Arduino 1-Wire ® Temperature (DS18B20)



Using cheap DS18B20, DS18S20, or DS1820


PCS Item Calculated Price Price bulk buy
5 DS18B20 4.69 E-bay US $ 4.69 with shipping to Denmark (Sep 2013)
1 4700Ω Resistor 0.02 E-bay US $ 0,02 (@100 pcs US $ 1.07) with shipping to Denmark (Sep 2013)


Recommended standard reusable hardware

PCS Item Calculated Price Price bulk buy
1 Arduino Pro Mini clone 3,71 E-bay US $ 3.71 @ 1 PCS with shipping to Denmark (Aug 2013)
1 Wire Jumper Cable 7.49 US $ 7.49 with shipping to Denmark (July 2013)
1 BREADBOARD SYB-170 170 TIE-POINTS 0.98 E-bay US $ 0.98with shipping to Denmark (Aug 2013)


Use donate button if you like my guides, or if you want a new guide ( See missing work ).

Datasheet 1-Wire ® Temperature (DS18B20)

some text some text

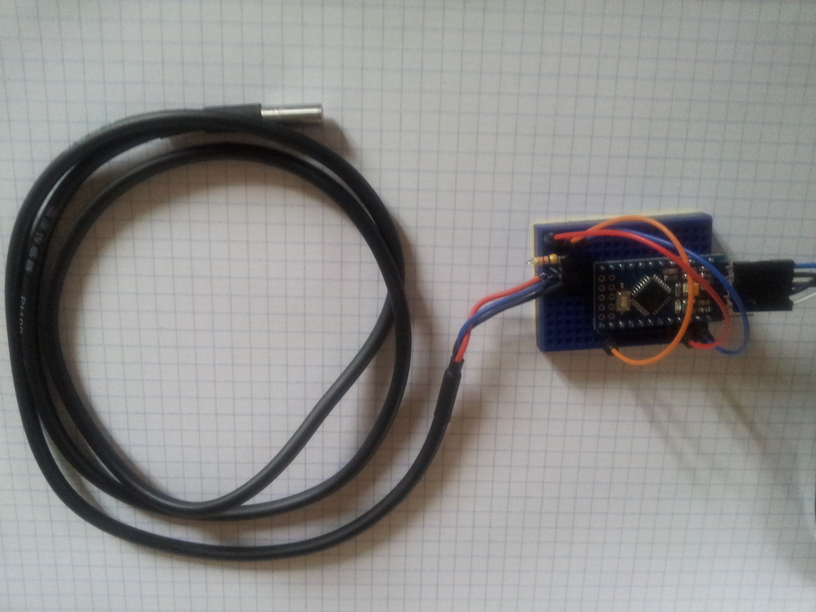

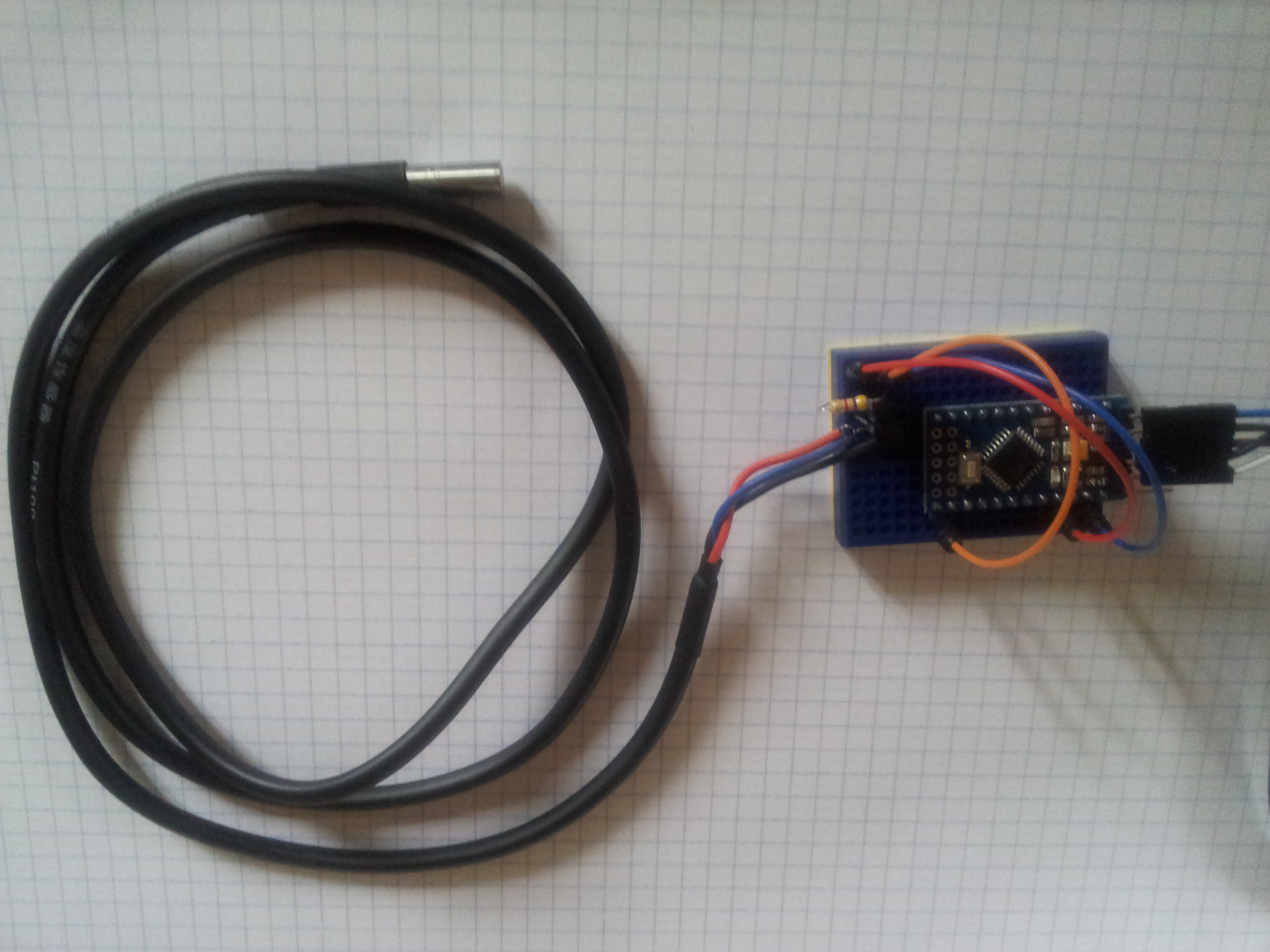

Here with a waterproof DS18B20.

My sample config require you add Libary - - Guide


Lib Local link Remote link
OneWire2_2 My Server External Link
DallasTemperature3_7_2 My Server External Link
DS_18X20_567.dk My Server

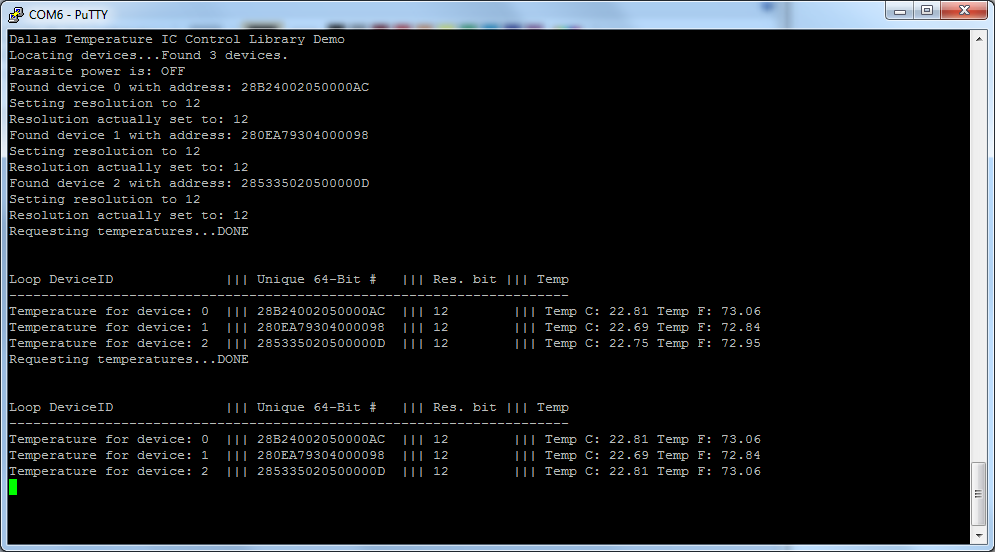

Sample output: From libary _Sample_Config567dk > DS18X20 > ds18x20Tester
some text
